Wiring issue
Submitted by Usurper on Sun, 2025-06-22 22:07

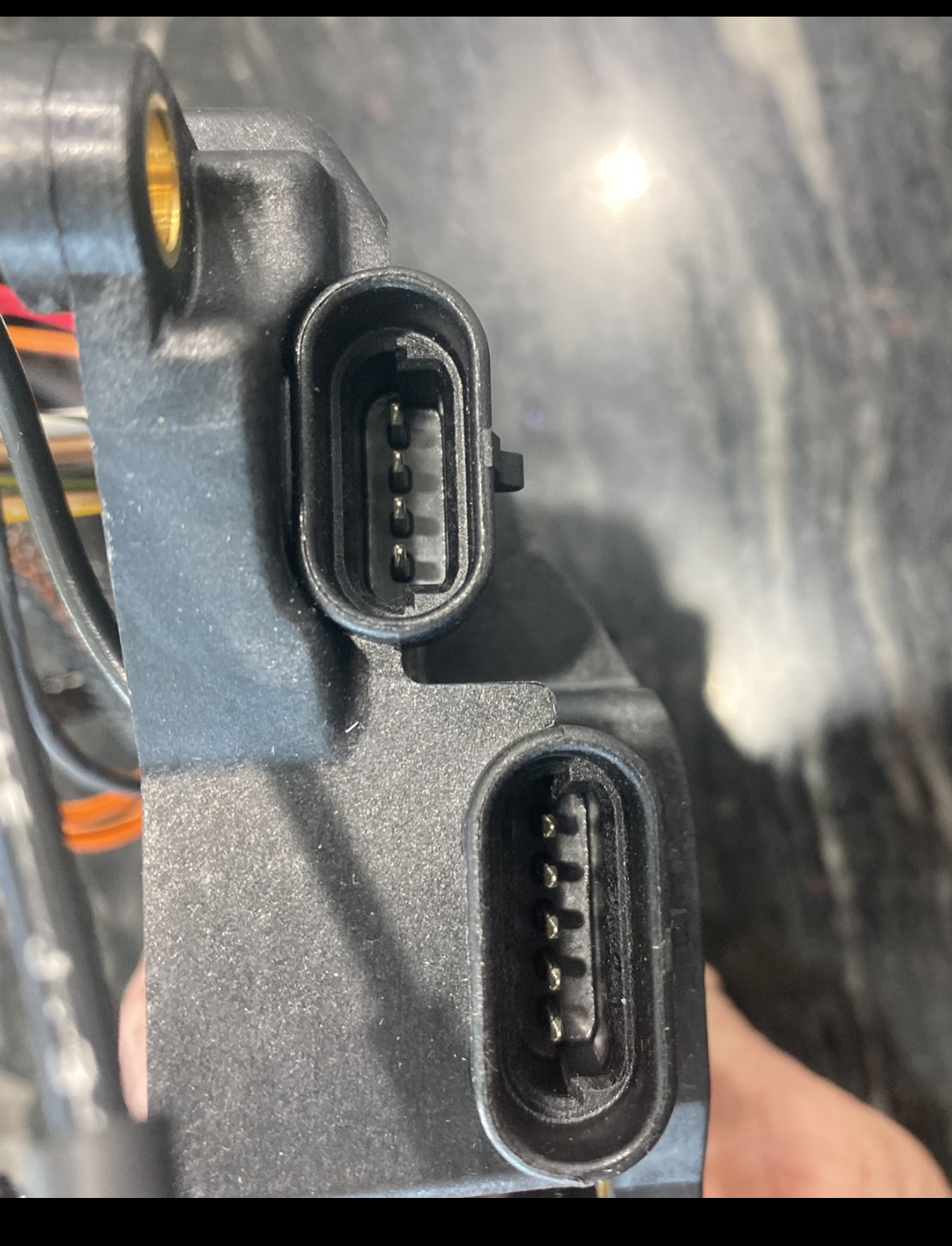

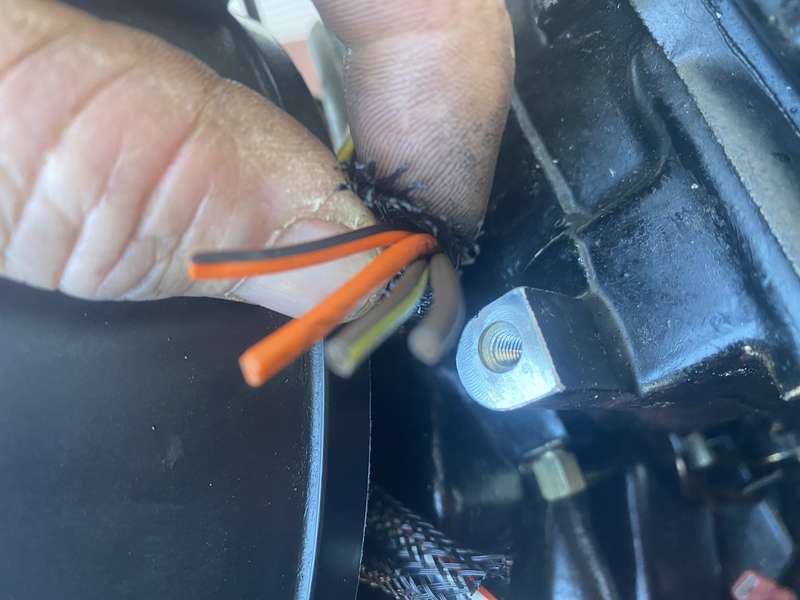

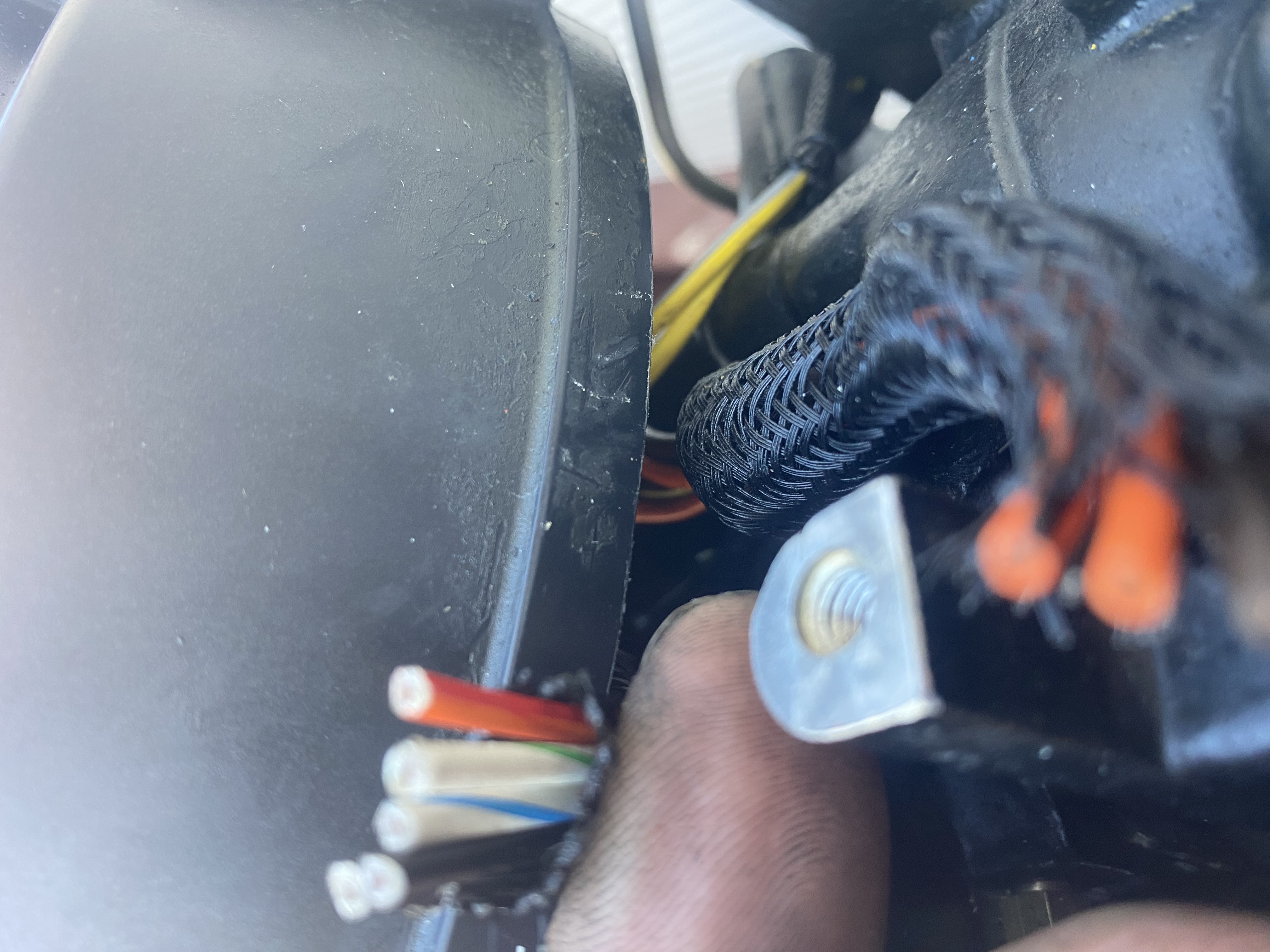

Hi guys I own a Evinrude 35 hp Elan 1997 model I have been chasing an engine cut out issue for weeks . I have narrowed it down to the cdi unit . The only problem I am facing now is the 2x plugs that were supposed to be in the top of the unit are missing . One for the optical and the other is for the stator . It has been hard wired with no plugs and I have removed the wires and have not documented the correct position /order of the wires . Any help or pics would be appreciated thanks .
Image Upload:
Faulkner Family
Posts: 18173
Date Joined: 11/03/08
Google is a good friend .
Google is a good friend . Solved many problems with google
RUSS and SANDY. A family that fishes together stays together
Brock O
Posts: 3297
Date Joined: 11/01/08
Not sure if this
Not sure if this helps...quick stab at your model number.
Usurper
Posts: 3
Date Joined: 19/06/25

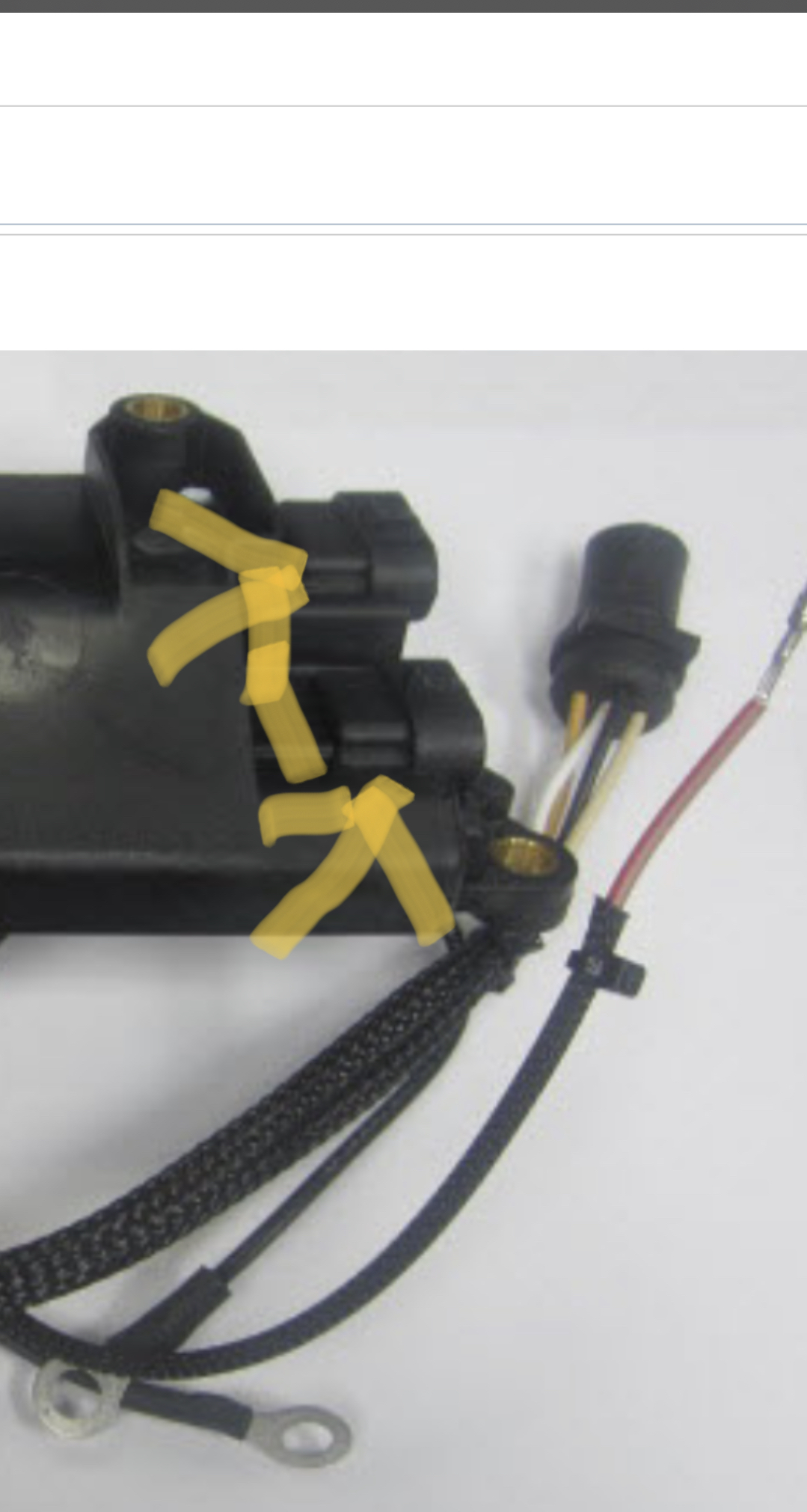

Thanks mate I have this unit
Thanks mate I have this unit just need to work out where the wires that plug into the top .
Usurper
Posts: 3
Date Joined: 19/06/25
Thanks mate I have this unit
Thanks mate I have this unit just need to work out where the wires that plug into the top .
