UHF Antenna Repair
Submitted by Stevo81 on Wed, 2015-06-24 18:29
Hey fellas the cable has come out of my UHF antenna. Does anyone know if it can be re-terminated? GME seem to be suggesting I need a a new antenna...
____________________________________________________________________________
•••••••• Electrical Contractor NOR ••••••••
Dale
Posts: 7930
Date Joined: 13/09/05
Without seeing the termination underneath, I can't really say.
"Just because you are a Character, Doesn't mean you have Character."
Mr Wolf
Stevo81
Posts: 1278
Date Joined: 16/04/12
Termination seems to be

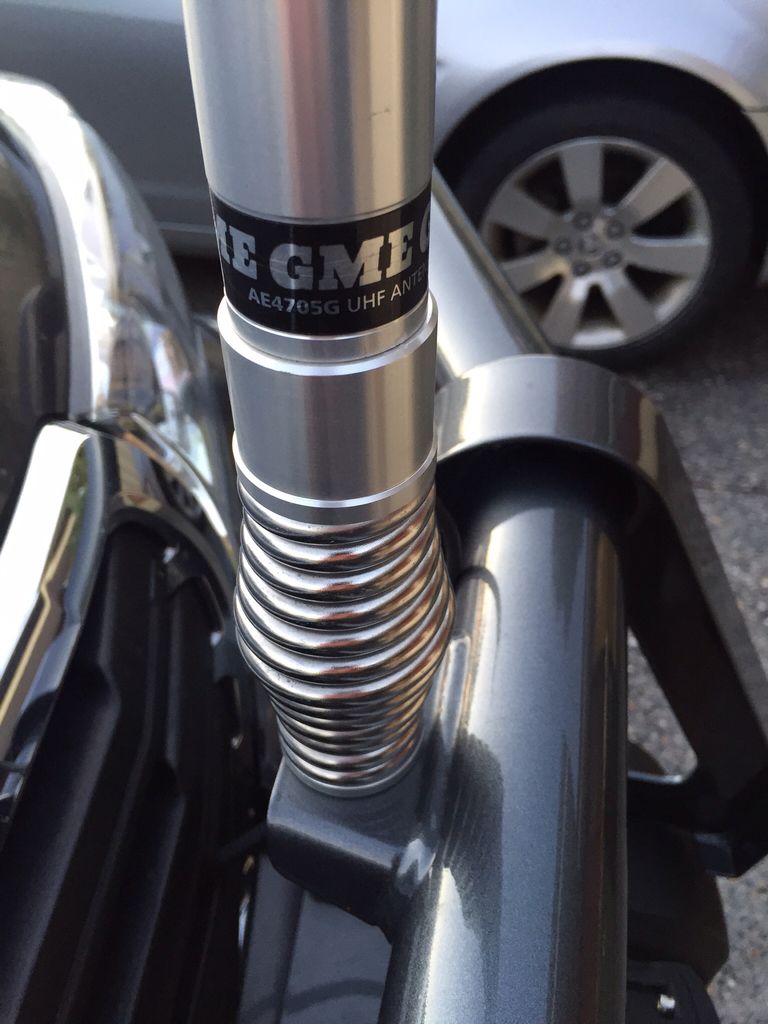

Termination seems to be above the spring but I can't seperate the spring from the antenna to get to it. Didnt want to use to much force but maybe needs it
•••••••• Electrical Contractor NOR ••••••••
Taffy
Posts: 184
Date Joined: 04/11/10
Just unscrew the spring
Just unscrew the spring from the Antenna and poke it back in the hole, the outer braid just needs to be tight around the bolt with the hole in when you screw it back in.
hope this makes sense, Termination should be up through the bottom of the spring
if you need a hand pm me, your number and i can send you a pic
Stevo81
Posts: 1278
Date Joined: 16/04/12
Thanks taffy, I'll have
Thanks taffy, I'll have another crack. Cheers
•••••••• Electrical Contractor NOR ••••••••
Taffy
Posts: 184
Date Joined: 04/11/10
No probs Steve
No probs Steve, the spring seperates just above the top coil of the spring, dont try seperating higher or it will be a bin job
Swompa
Posts: 3969
Date Joined: 14/10/12
Yep, just see if you can
Yep, just see if you can unscrew any part above the spring
Brucesta
Posts: 1721
Date Joined: 29/05/09
https://www.gme.net.au/media/
https://www.gme.net.au/media/1707991/general-land-antenna-installation-instruction.pdf
Looking at your photo and the instructions i have linked you need a new PL259 connector that's all. but you'll have to get past that spring first to access the old connector. you don't need a new antenna that's for sure. You'll need a soldering iron or if you can't be arsed go to a 4x4 shop or car audio store and ask them to fit one off for you, should only cost you pilbara currency for that (a carton)
Las Vegas - Rolling the dice and trying your luck. 1M+ Barra summer target. 100kg Black Marlin winter target
Taffy
Posts: 184
Date Joined: 04/11/10
Why would he need a PL259
wHY
Taffy
Posts: 184
Date Joined: 04/11/10
Why would he need a PL259
why would he need a PL259 when you can just put it back in and re crimp it
Brucesta
Posts: 1721
Date Joined: 29/05/09
Well it's fixed now but if
Well it's fixed now but if it was a crimp style he would need a new one, screw type yeah he'd be able to reuse. You risk reflections when you transmit if you dodgy your termination and you'll lose range on transmissions and poorer receive
Las Vegas - Rolling the dice and trying your luck. 1M+ Barra summer target. 100kg Black Marlin winter target
Stevo81
Posts: 1278
Date Joined: 16/04/12
Fixed guys, cheers
Fixed guys, cheers
