tm 260 on a barcrusher
Im fitting out my mates 620 barcrusher with his new furuno that will be running a TM260. Im stuck on the transducer angle due to the transom being vertical.
Im running the same tranny on my trailcraft and was going to set it up like mine using 1 wedge that has the trailing edge slightly lower and l get a great reading at speed. The difference between the boats is the transon on the trailcraft is slight forward of vertical so l dont need alot of wedge angle.
Now with the Barcrusher and the vertical transom lve used the 3 wedges and l still cant get the trailing edge lower. Best l can come up is flat with the transom using 2 wedges and a 10mm packer in at the top. For me to get what l want l still need to pack it out at top another 5 mm.
Can you get shims for these trannys that give a better angle or is it a case of packing it out like lm doing.
Is anyone running the same tranny and how did you over come this. If your got pics even better l would love to see them.

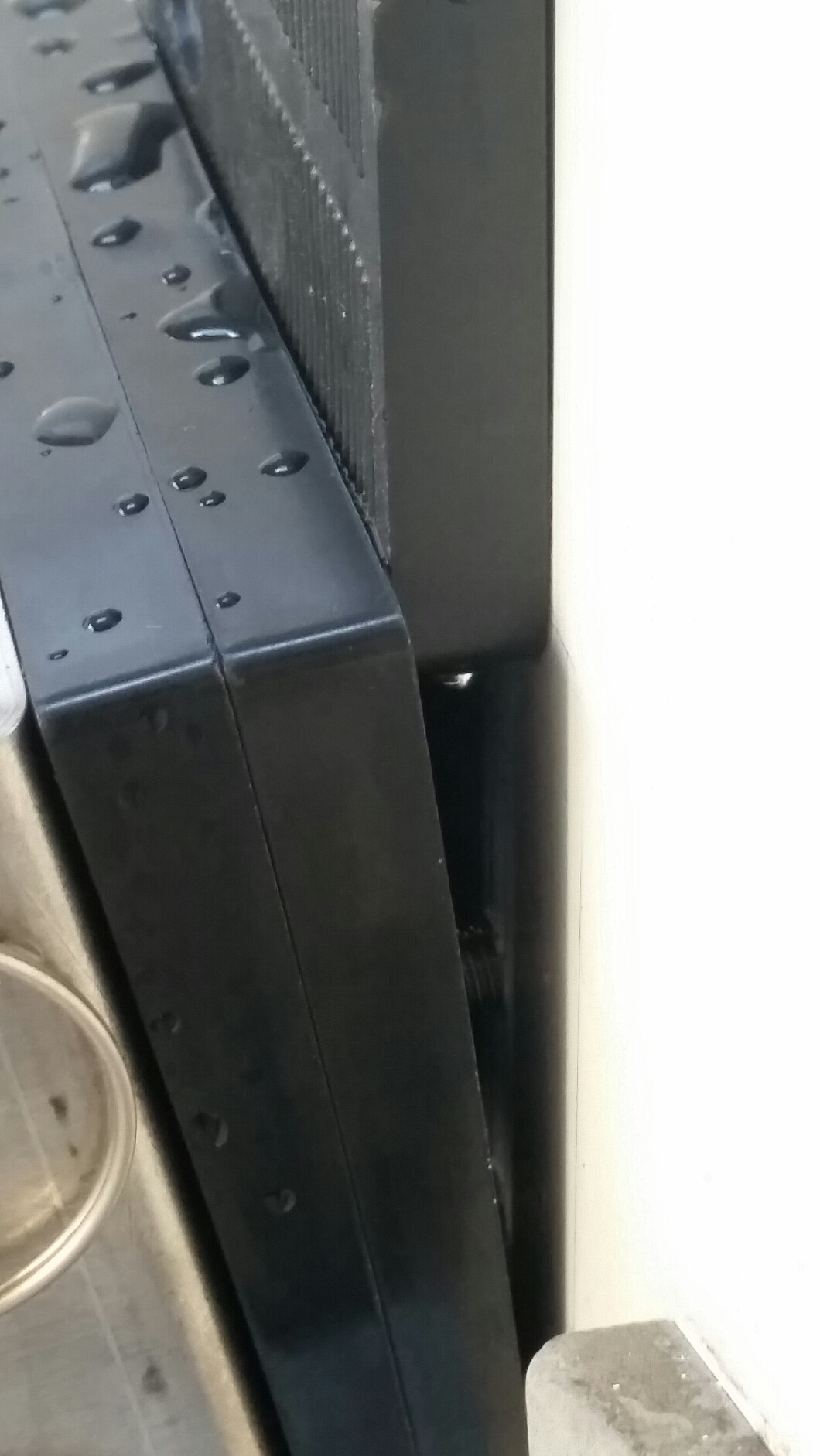

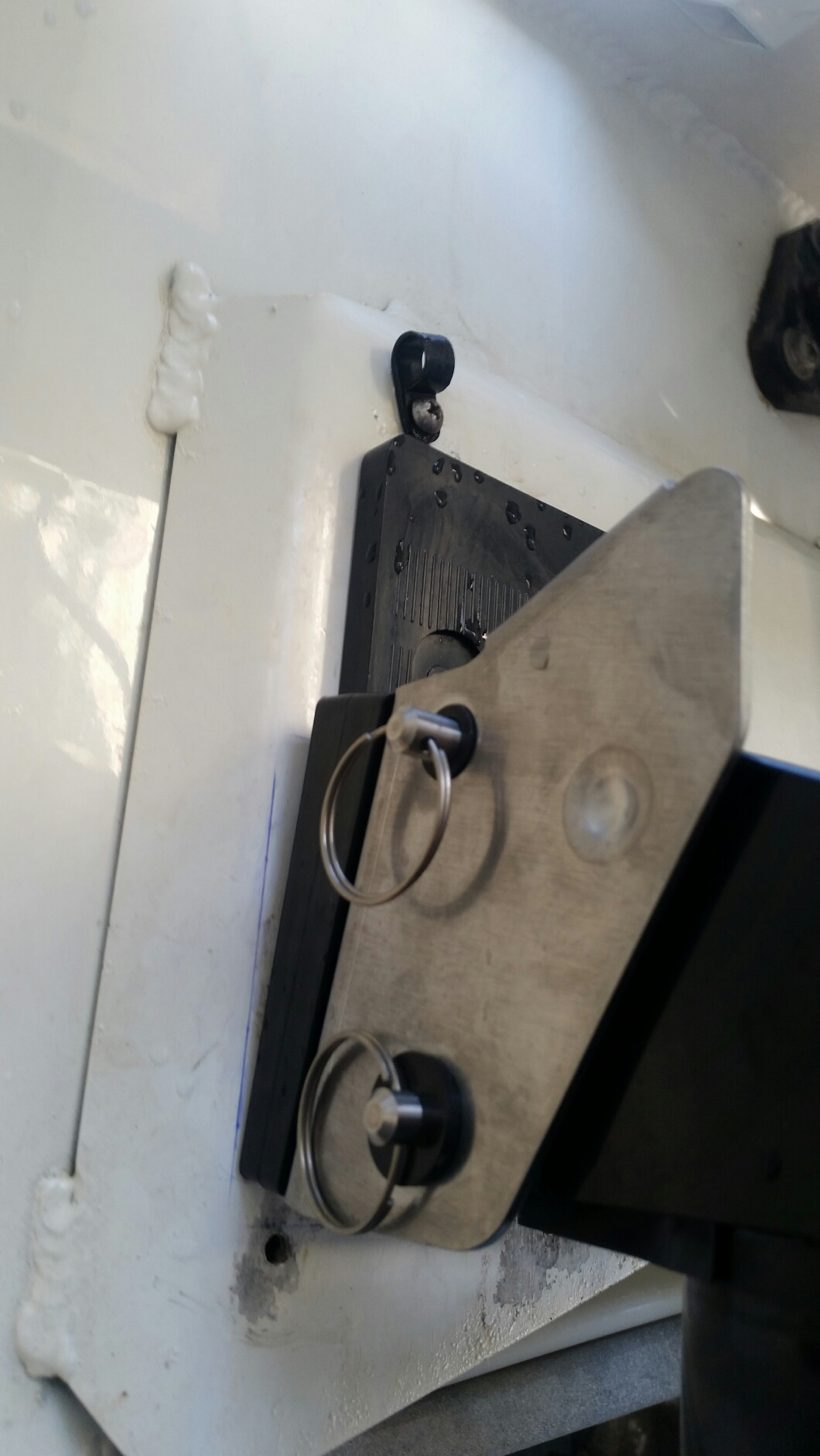

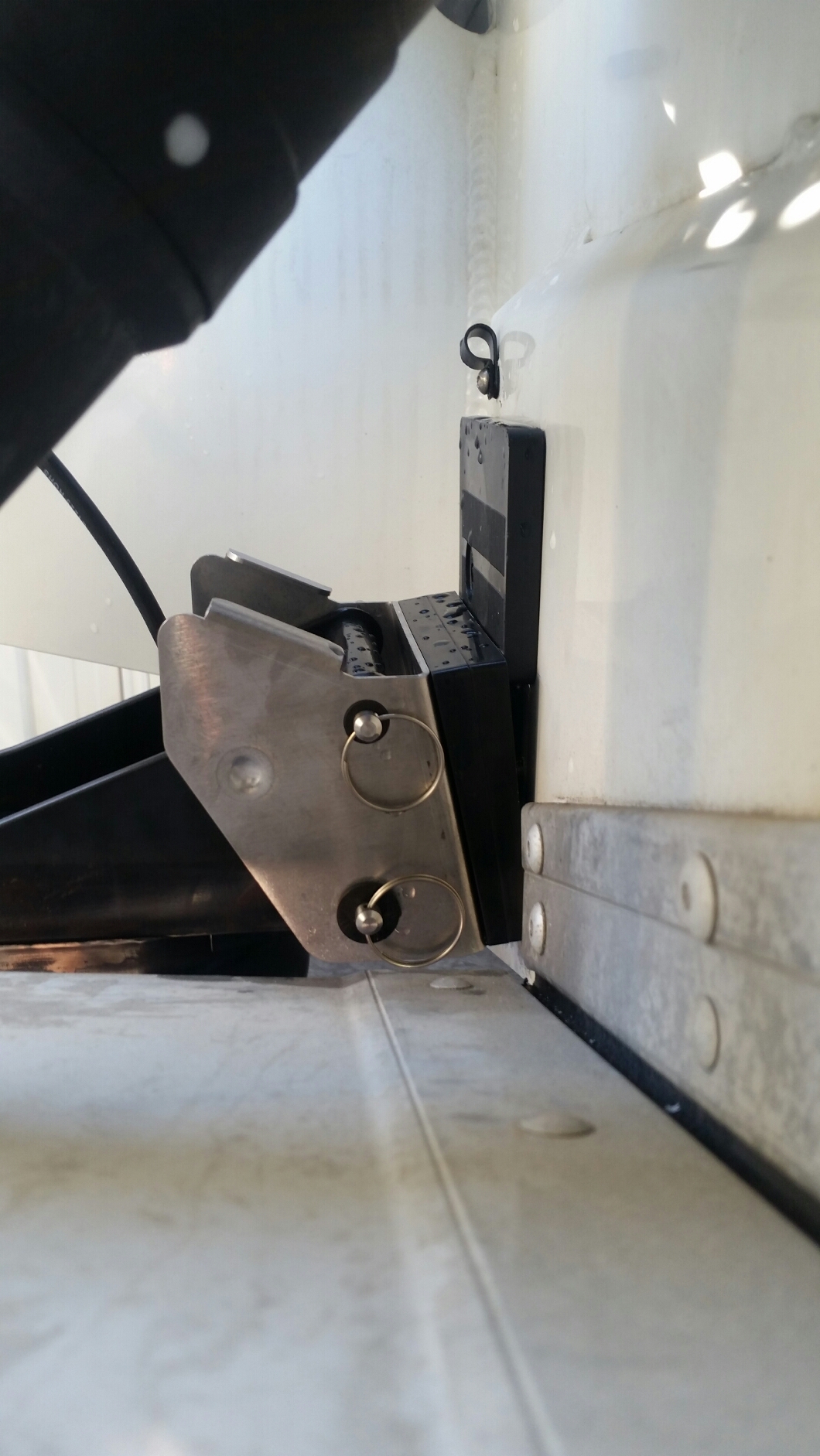

Heres some pics of what lve had to do. Tranny is only mounted loosely atm until l can come up with a solution
I hope it all makes sense. Ha
Cheers Paul
Scotte
Posts: 1147
Date Joined: 07/12/06
Can you make a wedge out of
Can you make a wedge out of seaboard or ali?
holth
Posts: 812
Date Joined: 09/10/06
Yeah mate l will probably be
Yeah mate l will probably be going down that path if there isnt a easier solution.
fishcrazy
Posts: 1235
Date Joined: 27/01/07
3rd shim
I just fitted mine there should be a third shim with it .
holth
Posts: 812
Date Joined: 09/10/06
Yeah 3 shims came with it.
Yeah 3 shims came with it. didnt even get it level. Did some more work on it since and it looks like l need a shim 30mm at top and 5mm at bottom. Found some starboard in the shed and will linish it down to make a shim.
thesupervisor
Posts: 1136
Date Joined: 10/06/09
You can get construction
You can get construction wedges
I have a box of makita wedges your welcome to a few if that helps
getting the bottom line final answer from a bunch of blokes that use false names and put smiley faces at the end of paragraphs is not the best place in the world to get the information you seek.
holth
Posts: 812
Date Joined: 09/10/06
Thank supervisor come to
Thank supervisor come to think of it lve got some of those in different sizes. Just have to dig though the shed. Cheers mate
opsrey
Posts: 1200
Date Joined: 05/10/07
Drill some new holes in the holding bracket.
how about drilling some new holes in the holding bracket. The top holes could,be red rolled twenty mm forward of present position and that would tilt the transducer down.
Go the wedge. New holes means fewer wedges. Plenty of stainless in that region.
Mitch88
Posts: 182
Date Joined: 23/09/14
G'day Holth, I have spare
G'day Holth, I have spare shims unused from my tm260 if you require more.
Regards Mitch
holth
Posts: 812
Date Joined: 09/10/06
Thanks for the offer mitch.
Thanks for the offer mitch. Yeah lve got spare shims from my tranny. Not keen on having 5 shims in there. Makes the bracket mount to far off the transom and l will need bolts atleast 70 mm long. Would rather have it closer. So it looks like l need to make my own shim.
They should supply different angled shims in packaging instead of 3 all the same.
Peko
Posts: 185
Date Joined: 01/10/14
I wish I knew how to post a
I wish I knew how to post a photo on one of these responses. I have two transducers on the back of my 780 but the difference being where you have the pins going through I have slots and bolts. With two bolts on either side it allows the transducer to be locked in position at the angle needed and never a problem.
telferfish
Posts: 142
Date Joined: 31/05/12
mate have a TM 260 on my
mate have a TM 260 on my barcrusher, i borrowed another shim off a mate, and 4 in total worked good, sounds well at 35kts
Peko
Posts: 185
Date Joined: 01/10/14
At 35kts? Good luck.
At 35kts? Good luck.
holth
Posts: 812
Date Joined: 09/10/06
Ive made a shim and will
Ive made a shim and will give it a try. If that doesnt give me what lm after l will use my spare shims and whack in 4 and try it.
Thanks for the info guys.
holth
Posts: 812
Date Joined: 09/10/06
Just an update for anyone
Just an update for anyone with a barcrusher looking to fit a TM260.
Telferfish was on the money. 4 shims is the go. l got a perfect reading at WOT 35knts +. Not a trace of interference or loss of bottom.
I was quite dumbfounded at the performance.
BarraSlayer
Posts: 287
Date Joined: 14/04/14
Looking at fitting one, can
Looking at fitting one, can you buy an extra shim with them?
Cheers
BarraSlayer
striker
Posts: 226
Date Joined: 26/09/14
Holths
up at Exmouth at the mo mate but maybe pm Mitch 88 as he offered holth some of the spares he had. It was my boat he sorted out and after coming back from Ningaloo I can only say he did a top job reads a treat at speed and out in the deep drop realms as well.
